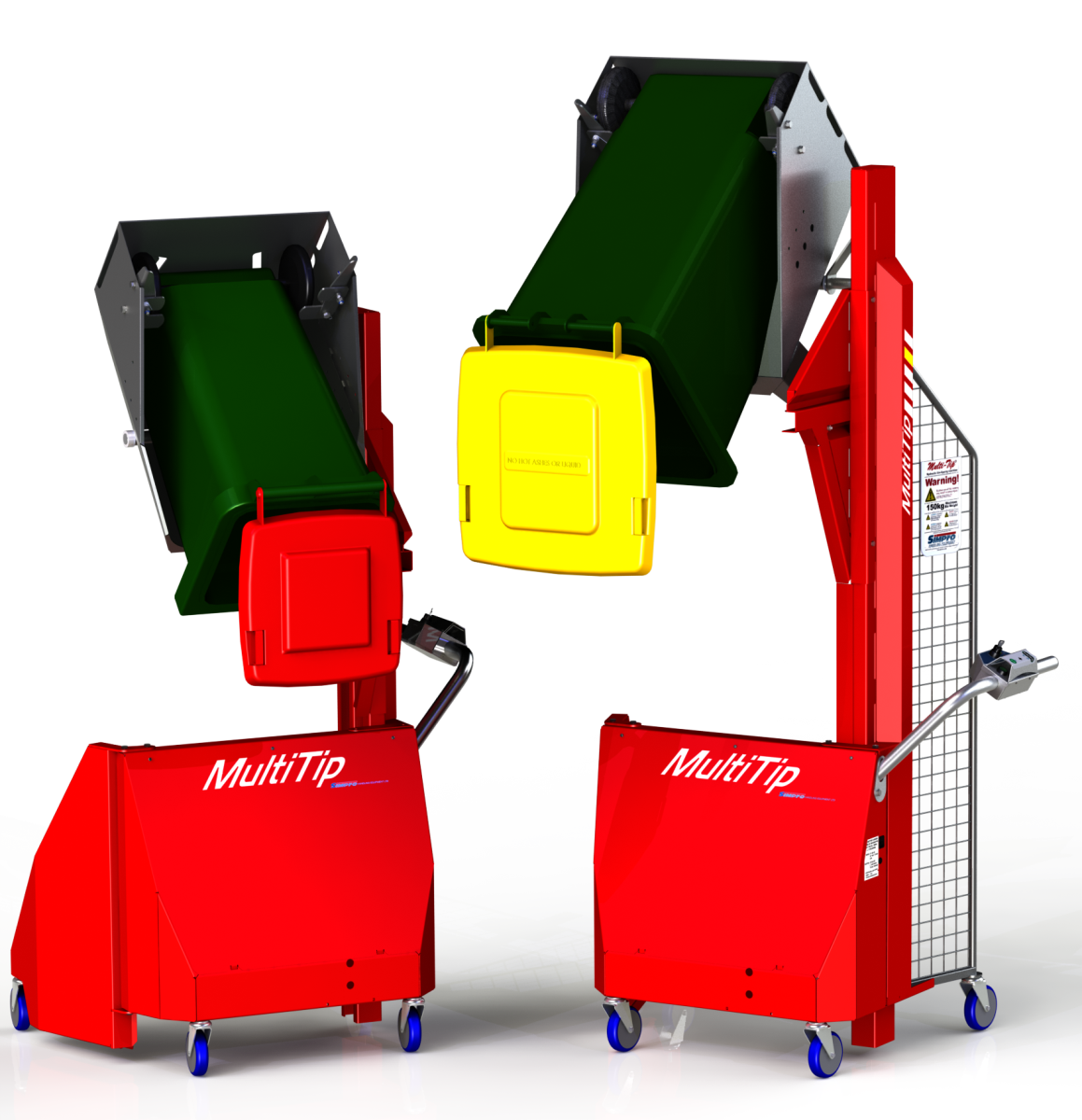

Multi-Tip™ Hydraulic Wheelie Bin Lifter
The Multi-Tip bin-tipper from ASK Equipment Sales is everything a bin tipper should be - safe, economic, easy to use, versatile, and efficient. Perfect for light industrial use to empty bins at schools, factories, recycling centres and more.
Features
- 150kg capacity
- Standard cradle designed for 240 litre MGB wheelie bins. Optional bolt-on spring-loaded catch kits enable 80l, 120l, & 140l bins to be emptied as well.
- Cradles to suit plastic and steel drums, rectangular bins and many other
containers can be simply fitted or exchanged. - Available in 2 standard tipping heights – 1200mm and 1600mm.
- Multi-Tip bin tippers are available with 1-phase, 3-phase, or battery power
packs. Battery-powered tippers have a sealed battery and an industrial-quality ‘float’ charger built in. - Both hands are needed to operate the machine.
- Multi-Tip bin-lifters require no regular maintenance, and are robustly built yet light and easy to move around.
.png)
- Multi-Tip bin lifters are designed to be safe to use, with all operating components fully enclosed.This also allows the unit to be operated indoors or outdoors.
- The standard cradle holds 240 litre MGB wheelie bins, but a range of bolt-on adaptor brackets is available to enable 80l, 120l, & 140l bins, plastic and steel drums, rectangular bins to be emptied as well, all weighing up to 150kg.
- Cradles to suit many other containers can be simply fitted or exchanged.
Options
- Stainless steel construction.
- Cradles to suit almost any size and shape of bin.
- Solar panel to charge the battery. Up to 30 bins per day can be emptied using the power of the sun only. Obviously this depends on the hours of direct sunlight per day, and the weight of the bins.
Specifications
| Multi-Tip Specifications | ||
|---|---|---|
| Model (SKU) | MT1200 | MT1600 |
| Tipping Height | 1200mm | 1600mm |
| Height (cradle lowered) | 1995mm | 2380mm |
| Height (cradle raised) | 2240mm | 2660mm |
| Length | 879mm | |
| Width | 1237mm | |
| Weight | ~150kg | ~160kg |
| Max Bin Weight | 150kg | |
| Cradle Compatibility | 60L, 80L, 120L, 140L, 240L, 360L wheelie bins (Options: custom cradle) | |
| Bin Throw | > 100mm | |
| Electrical Specifications - Battery | 12v 21Ah sealed gel battery, driving 0.8kw DC motor drawing 100 Amps, with 12v DC control voltage | |
| Electrical Specifications - Single-Phase | 240v AC 50/60hz 1-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps via VSD (Variable Speed Drive controller), with 24v DC control voltage | |
| Electrical Specifications - Three-Phase | 400v AC 50/60hz 3-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps, with 24v DC control voltage | |
| User Interface | Raise/Lower buttons, Safety button, key switch, battery indicator, master lockout switch (Options: VSD control lever) | |
| Ingress Protection | IP55 (Options: IP56, IP69K) | |
| Guarding | 25x25x2.5 wire mesh | |
| Corrosion Protection | Powder-coated frame, zinc-plated cradle and guards (stainless steel optional) | |
| Wheels | ⌀100mm Blue Resilex castors (Options: ⌀200mm castors, pneumatic tyres, bolt-down lugs) | |
| Applicable Standards and Certifications | AS/NZS4024, ISO 13849-1, IEC 62061, Conformité Européene (CE), EN 349 1993, EN 574 1996+A1:200, EN 953 1997, EN ISO 4413 2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857 2008, EN 60204 2006+A1 2009, EN61000-6-2 2005, EN61000-6-4 2007, Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC | |
Further Information is available on the manufacturer's website.
