Dumpmaster™ Hydraulic Wheelie Bin Lifter

Dumpmaster wheelie-bin tippers are the ultimate solution to empty bins and drums weighing up to 300kg at virtually any height. The tipping action of a Dumpmaster is one of the safest, most efficient, and easiest to use systems in the world.

Dumpmasters are highly versatile and can be used in numerous applications, ranging from emptying rubbish bins into skips to pouring food ingredients into hoppers or mixers.

No matter what the application, Dumpmasters have proven to be safe, reliable and economical to operate, year after year.

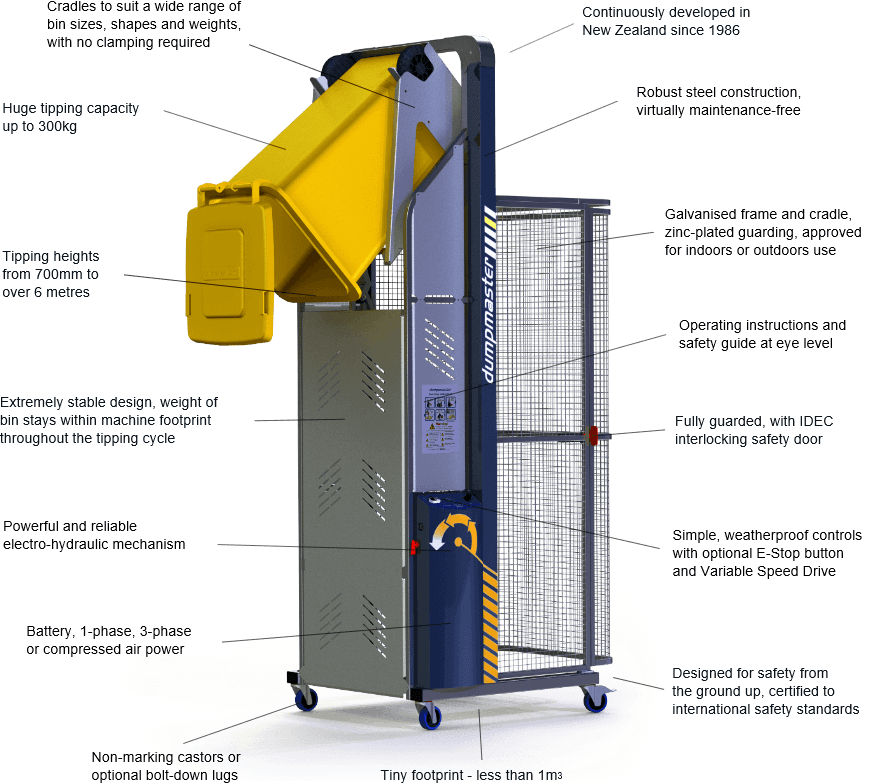

Dumpmaster bin lifters have a unique tipping action whereby bins are lifted straight up, and then gently rolled forward around the lip of the skip or hopper being emptied into.

If you need bin-lifters that accommodate wider or heavier bins have a look at our MegaDumper Series.


  • a very small ‘footprint’
  • a wide range of tipping heights (from 700mm to 6 metres or more).
  • Dumpmasters may be mounted on four castors with no loss of stability.
  • A huge weight capacity of up to 250kg (or 300kg with small modifications). If you can get the bin to it, a Dumpmaster will lift it!
  • The basic design can be modified to suit a wide range of bin sizes, shapes, and weights.
  • Standard Dumpmasters have a galvanised frame and cradle, and are virtually maintenance-free.
  • Standard drums and bins do not require clamping – simply place on the cradle and press the ‘Raise’ button.
  • Dumpmasters can be fitted with multi-purpose cradles which can empty wheelie bins of all standard sizes from 80 to 240 litre bins or even 80 to 360 litre bins with no adjustment.
  • Dumpmasters are Electric-Hydraulic bin tippers and are offered with a choice of 1-phase, 3-phase, battery or air-operated hydraulic power packs. (Note: Air-operated systems are generally for use in hazardous environments only)
Features of the Simpro Dumpmaster from Ask Equipment


  • Power supply: 1-phase, 3-phase, battery, or compressed air
  • Full or partial stainless steel construction
  • Corrosion-resistant nickel-plated lifting chain
  • Frame-mounted tip chute
  • Bin hook kit to secure machine in position
  • Cradles to suit any type of bin or drum
  • Swing-up, left-hinge or right-hinge door
  • Category-3 Safety Certification
  • E-Stop button and master lockout switch
  • Dual side covers and controls
  • 'Door end' controls
  • Polycarbonate splash shield
  • Unbreakable PET-G guarding
  • 25mm fine mesh guarding
  • Steel front guard panel
  • Foot guard panels
  • Certified door latch
  • Auto-cycle controller
  • Solar panel
  • Digital scales


Dumpmaster Specifications
Model (SKU) DM1200 DM1500 DM1800 DM2100 DMXXXX (Custom)
Tipping Height 1200mm 1500mm 1800mm 2100mm XXXXmm
Guarding Height 2200mm
Height 2260mm 2560mm 2860mm 3160mm XXXX + 1060mm
Length (door closed) 1171mm
Length (door open) 1834mm
Width 964mm
Weight ~205kg ~220kg ~235kg ~250kg ~XXXX * 0.05 + 145kg
Max Bin Weight 250kg
Cradle Compatibility 60L, 80L, 120L, 140L, 240L, 360L wheelie bins (Options: custom cradle)
Bin Throw 100mm
Electrical Specifications - Battery 2x 12v 21Ah sealed gel batteries in series configuration, driving 0.8kw DC motor drawing 60 Amps, with 24v DC control voltage
Electrical Specifications - Single-Phase 240v AC 50/60hz 1-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps via VSD (Variable Speed Drive controller), with 24v DC control voltage
Electrical Specifications - Three-Phase 400v AC 50/60hz 3-phase mains supply, driving 0.75kw AC motor drawing 1.9 Amps, with 24v DC control voltage
User Interface Raise/Lower buttons, key switch, battery indicator, master lockout switch (Options: E-stop button, VSD control lever)
Ingress Protection IP55 (Options: IP56, IP69K)
Guarding 25x25x2.5 wire mesh (Options: transparent PET-G, 1.6mm sheet metal, sheet stainless steel)
Corrosion Protection Hot-dip galvanised frame, galvanised cradle, zinc-plated guards (Options: stainless steel)
Door Left-hinged door (Options: right-hinged door, swing-up door with gas strut assist)
Door Lock Solenoid-operated electrical safety interlock
Wheels ⌀100mm Blue Resilex castors (Options: ⌀200mm castors, bolt-down lugs)
Applicable Standards and Certifications AS/NZS4024, ISO 13849-1, IEC 62061, Conformité Européene (CE), EN 349 1993, EN 574 1996+A1:200, EN 953 1997, EN ISO 4413 2010, EN ISO 12100 2010, EN ISO13849-1 2006, EN ISO 13857 2008, EN 60204 2006+A1 2009, EN61000-6-2 2005, EN61000-6-4 2007, Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2004/108/EC

Further Information is available on the manufacturer's website.
